POWERGRID Warora Transmission Limited
(Location: Maharashtra & Madhya Pradesh)
| Transmission lines/Substations |
Location |
Line length / Transformation capacity |
Specifications |
Contribution to total transmission charges |
| Interim arrangement * |
Madhya Pradesh |
30.55 ckm |
765 kV D/C |
21.00% |
| Gadarwara STPS-Jabalpur Pool |
Madhya Pradesh |
173.92 ckm |
765 kV D/C |
| LILO of both circuits of Wardha -Parli (PG) 400kV D/C line at Warora Pooling Station (Quad) |
Maharashtra |
196.29 ckm |
400 kV D/C |
79.00% |
| Gadarwara STPS-New Pooling Station within the jurisdiction/ boundary of Warora |
Madhya Pradesh and Maharashtra |
627.35 ckm |
765 kV D/C |

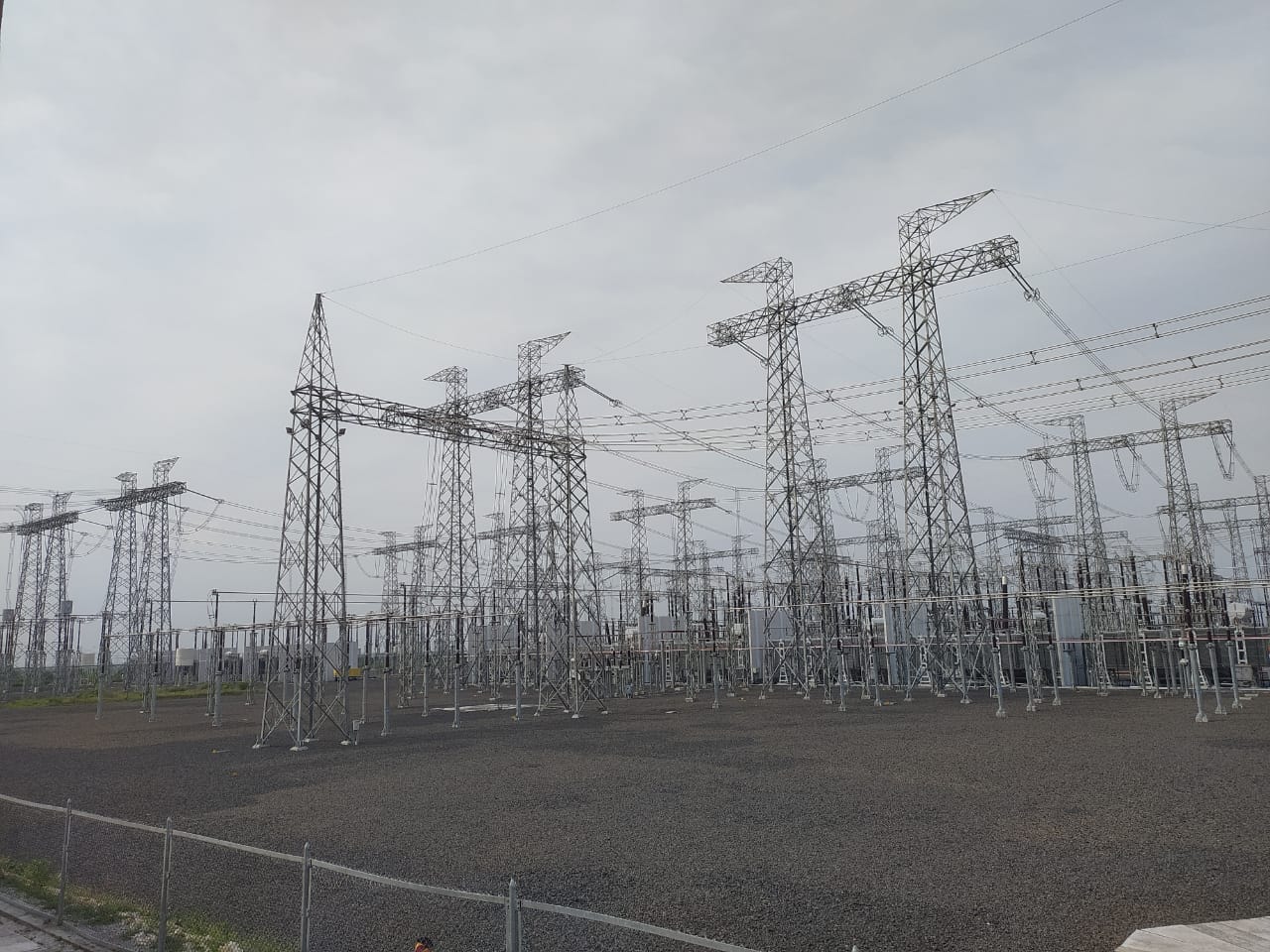

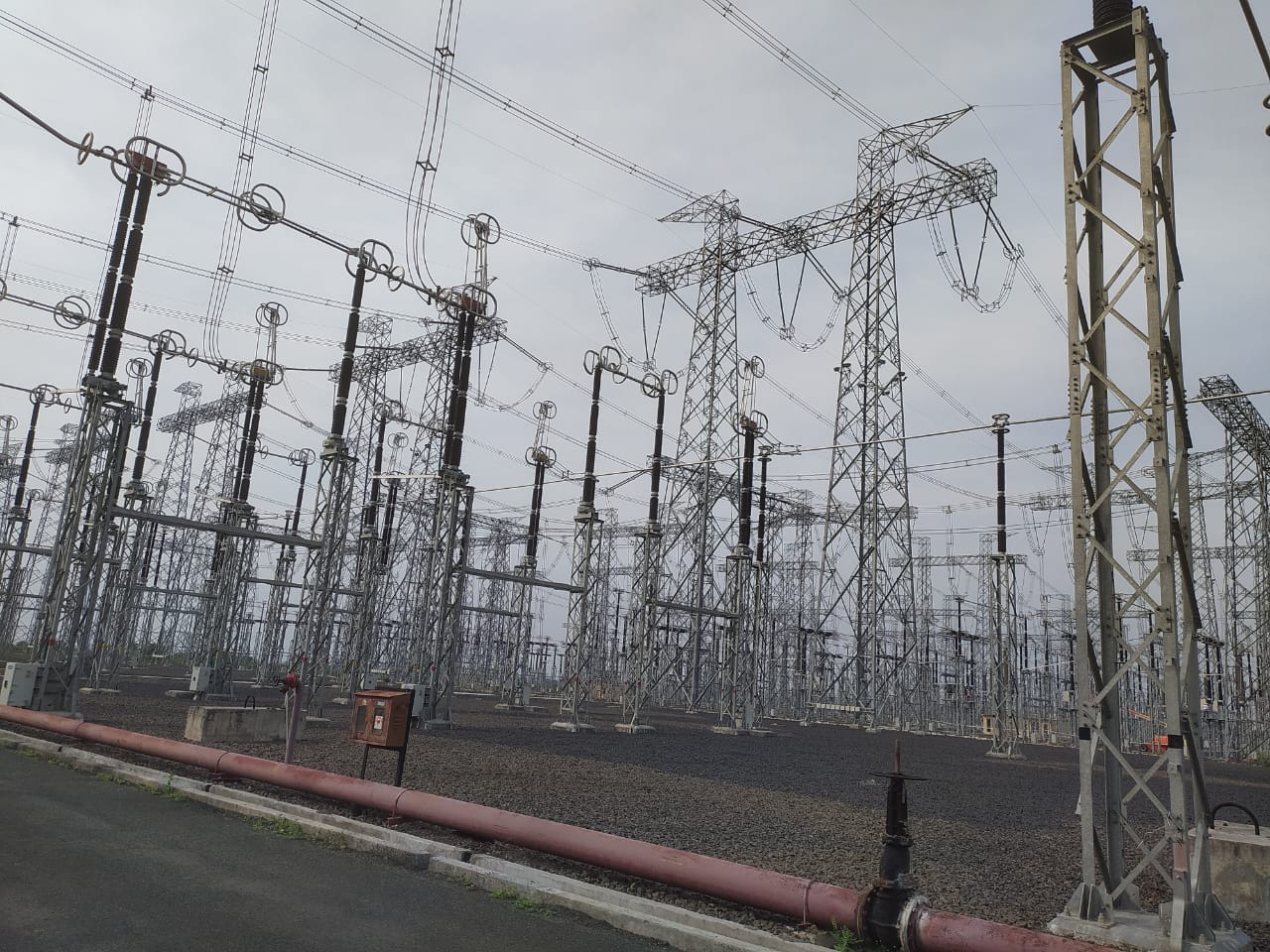

| 2x1500 MVA, 765/400 kV (New Pooling Station within the jurisdiction/ boundary Warora) |
Maharashtra |
3,000 MVA |
765/400kV Substation |
* ( As per the interim arrangement, LILO of existing Seoni-Bina 765kV S/C line at Gadarwara STPS would be established. At a later date, LILO portion would be delinked from Seoni-Bina 765kV S/C line to restore the Seoni-Bina 765 S/C direct line, and the LILO portion would be extended to the Jabalpur 765/400 kV Pooling Station to form the proposed Gadarwara 765/400kV Pooling Station to form the proposed Gadarwara-Jabalpur Pool 765 kV D/C line.)
